Rib & Block
Suspended Flooring

home_builder_sep
Rib & block slabs remains the most cost effective solution for suspended flooring.
Through innovative design we can offer our clients the versatility for irregular shapes, excellent structural integrity and improved sound and heat insulation. These benefits together with ease and speed of erection offer substantial savings over in-situ slabs.
SPECIFICATIONS

Prestressed Ribs

  • Normal size : 150 x 58 mm
  • Mass 21.00 kg/m
  • Concrete strength at transfer 25MPA, Ult.40 MPA @ 28 days


Concrete Hollow Blocks

  • Standard hollow block widths 440mm
  • All orders are supplied with required quantity of closed ends.
  • Extra quantities are supplied for breakage
  • Anti-crack weld mesh supplied with 12% allowance for overlap


Reinforcing Steel

  • Y10 reinforcing bars are supplied in straight lengths for all stiffener ribs


Design Parameters

  • In situ concrete 25 MPa @ 28 days
  • Prestressed wires 5.00mm diameter 1700 MPa
  • Temporary support under stiffener ribs as detailed on drawings (Maximum 1500mm)
rb1
rb2
BENEFITS OF SPANSLAB RIB & BLOCK SLABS INCLUDES:

  • It’s versatility
  • Cost effective
  • Excellent structural integrity
  • Factory controlled quality product
  • Ease of erection
  • Does not require skilled labour
  • Excellent finishing
  • Reduction in the use of form work and scaffolding
  • Flexibility
  • Electrical and plumbing services can easily be accommodated
  • Excellent insulation from heat, cold and sound
  • Lightweight
  • Deflection reduced to pre-stressing

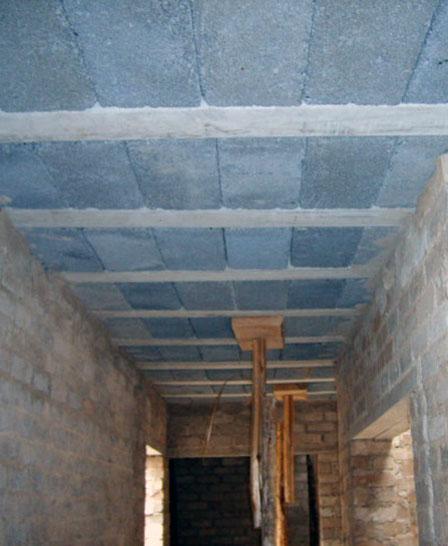

rib_and_block
Suspended Flooring
paving
Paving
readymix
Ready Mix

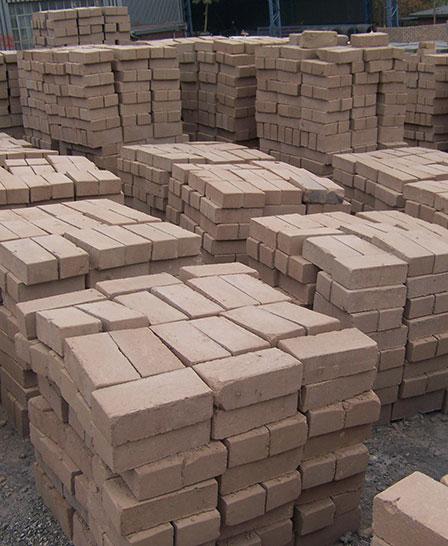

Building-products
